Overview

When certain components are reset or replaced, a FUYL Locker may require an Address Locks procedure be performed. This process re-familiarises the control door with the location, firmware version and order of each of the locks.

Prerequisites

• A FUYL 5 or 15 Locker (excluding MK1). Help with identifying a FUYL Locker
• An administrator key
• An administrator PIN (default is 31082018 if this is a newly reset unit)

Procedure

FUYL Pro (MK3)

1. Power down the FUYL Locker
2. Open the side door with the administrator key

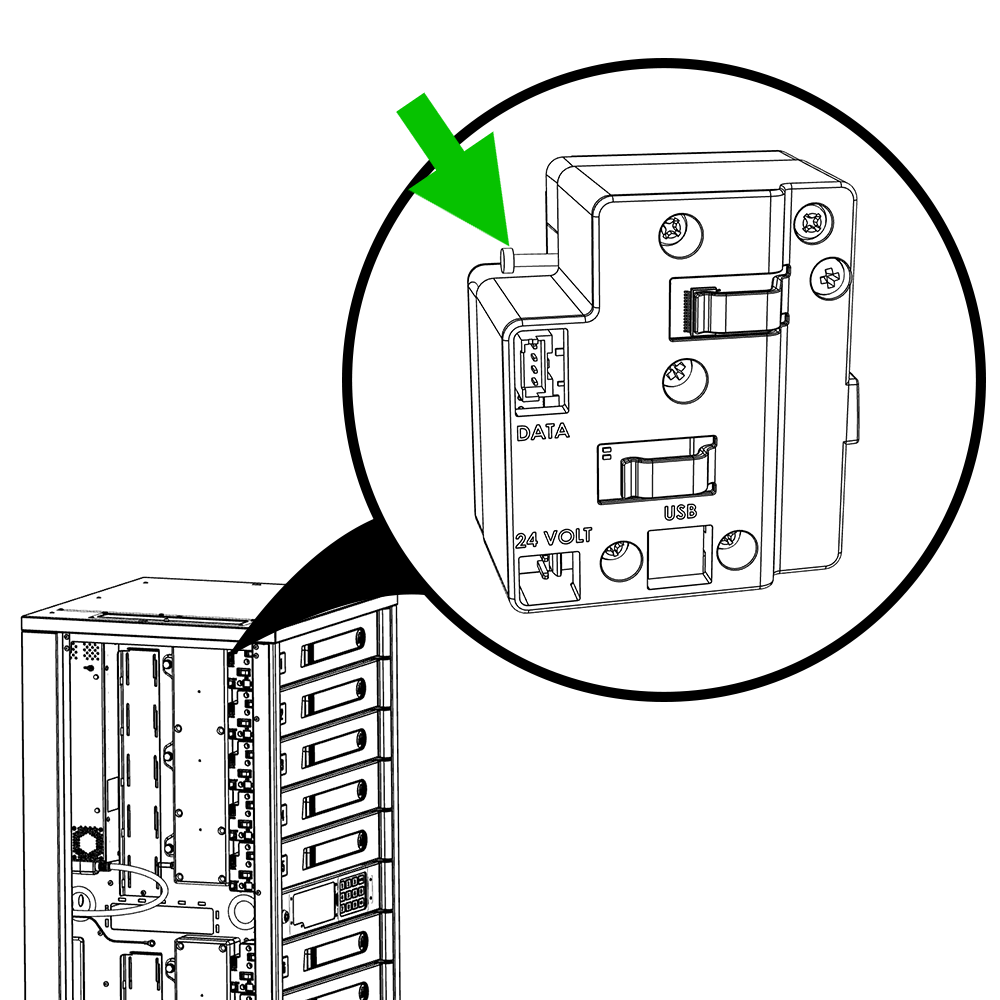

3. Ensure the physical connections to each bay are secure
4. Power on the FUYL Locker (all LEDs should show some activity)
5. Access the administrator menu on the control door
6. Select Address Locks from the Danger Zone sub-menu and confirm
7. The bay LEDs will change and may undergo a firmware update before normal operation resumes

If any issues arise or persist after this process, contact the support team for further advice.

FUYL (MK2)

1. Power down the FUYL Locker
2. Open the side door with the administrator key
3. Ensure the physical connections to each bay are secure
4. Manually open each bay using the override levers

5. Power on the FUYL Locker (all LEDs should show some activity)
6. Access the administrator menu on the control door
7. Select Address Locks from the Danger Zone sub-menu and confirm
8. Each bay LED will change to yellow (If not, continue this process but note the difference in case the support team is required)
9. The screen will display Searching for lock 1
10. Close each bay sequentially, waiting for the screen to update before continuing
11. After all bays are closed, press "OK" on the PIN keypad
12. The bay LEDs will change and may undergo a firmware update before normal operation resumes

If any issues arise or persist after this process, contact the support team for further advice.
