Address Locks on a FUYL Locker

Updated

Overview

When certain components are reset or replaced, a FUYL Locker may require an Address Locks procedure be performed. This process re-familiarizes the control door with the location, firmware version and order of each of the locks. The procedure varies depending on the locker hardware and cloud options, with specific steps for Classic (Standalone/Essentials/Advanced) and Enhanced (with Kiosk) detailed below.

Prerequisites

  • A FUYL 5, 8, 15 or 23 Locker (excluding MK1). Help with identifying a FUYL Locker
  • An administrator key
  • Classic Only: An administrator PIN (default is 31082018 if this is a newly reset unit)
  • Enhanced Only: An administrator login
  • MK2 & MK3 using Enhanced Only: A temporary PIN generated by the support team

Procedure (Enhanced)

FUYL 8 & 23

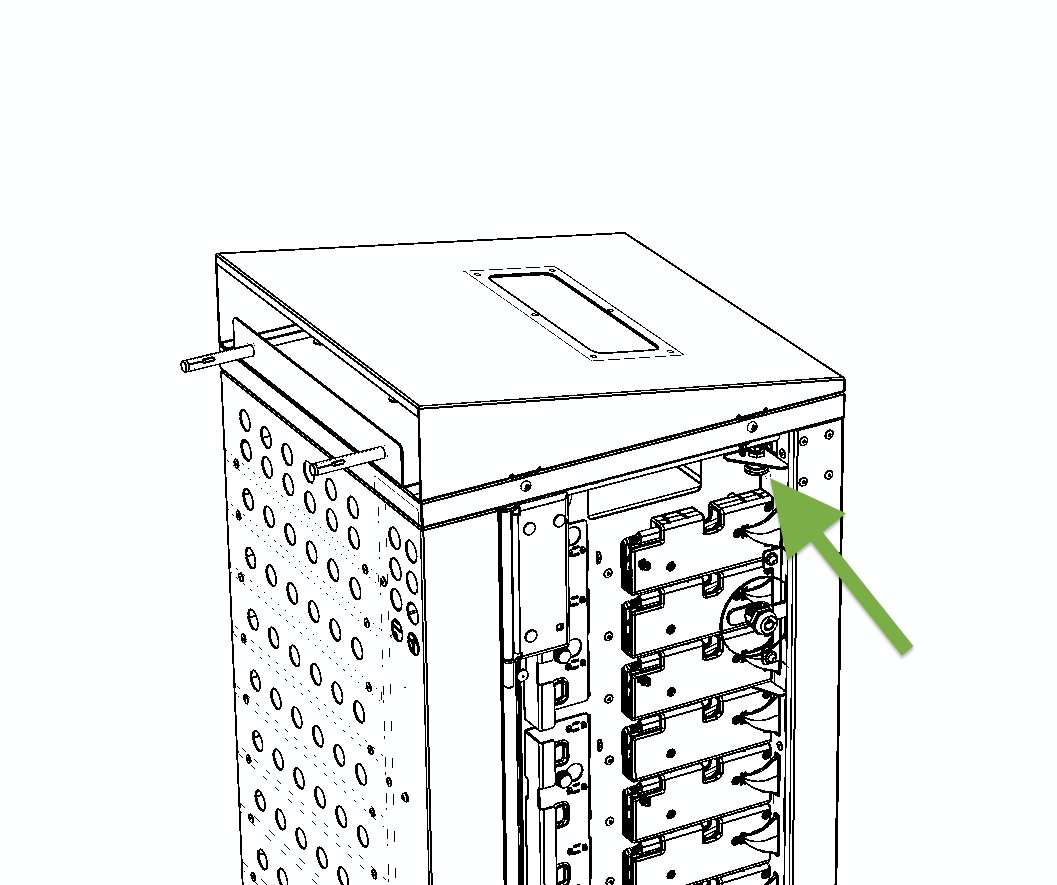

  1. Open the side access door and pull the screen-door release pin downwards, then gently press to open the door
    FUYL23 ControlDoor Release.png

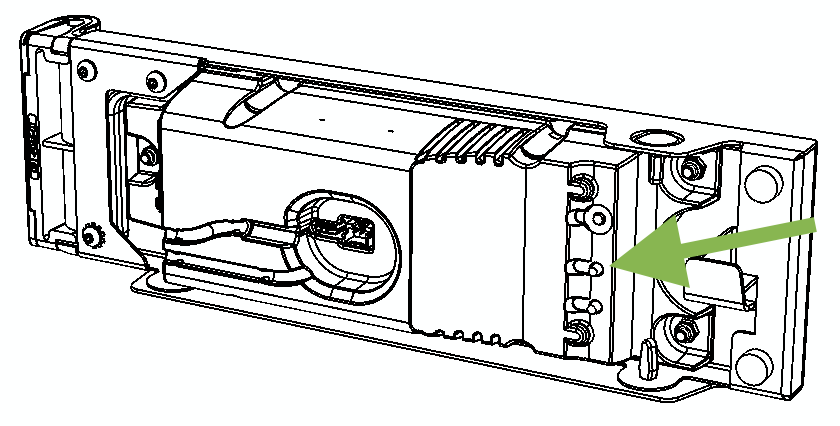

  2. Locate the "A" button
    A button.png
  3. Press and hold the A button for 5 seconds
  4. The locker will address locks automatically and may restart once completed.

If any issues arise or persist after this process, contact the support team for further advice.

FUYL Pro (MK3) & FUYL (MK2)

Performing Address locks on an MK2 or MK3 locker requires a temporary administrator PIN be generated by the support team before beginning.

Once a PIN is provided, follow the Classic guide for your hardware below.

Procedure (Classic)

FUYL Pro (MK3)

  1. Power down the FUYL Locker
  2. Open the side door with the administrator key
  3. Ensure the physical connections to each bay are secure
  4. Power on the FUYL Locker (all LEDs should show some activity)
  5. Access the administrator menu on the control door
  6. Select Address Locks from the Danger Zone sub-menu and confirm
  7. The bay LEDs will change and may undergo a firmware update before normal operation resumes

If any issues arise or persist after this process, contact the support team for further advice.

FUYL (MK2)

  1. Power down the FUYL Locker
  2. Open the side door with the administrator key
  3. Ensure the physical connections to each bay are secure

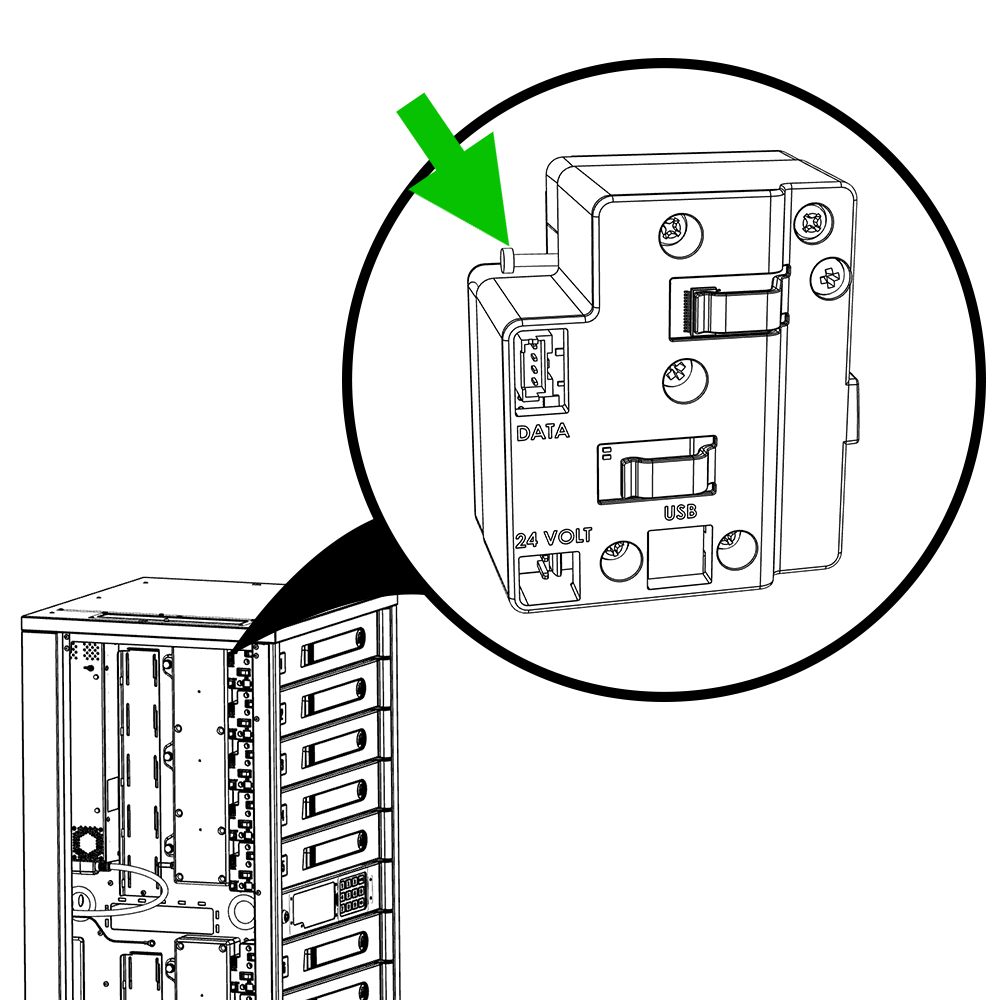

  4. Manually open each bay using the override levers
    90bfd466-3d26-4827-8f09-32c299ba1bed
  5. Power on the FUYL Locker (all LEDs should show some activity)
  6. Access the administrator menu on the control door
  7. Select Address Locks from the Danger Zone sub-menu and confirm
  8. Each bay LED will change to yellow (If not, continue this process but note the difference in case the support team is required)
  9. The screen will display Searching for lock 1
  10. Close each bay sequentially, waiting for the screen to update before continuing
  11. After all bays are closed, press "OK" on the PIN keypad
  12. The bay LEDs will change and may undergo a firmware update before normal operation resumes

If any issues arise or persist after this process, contact the support team for further advice.
