Overview
This guide assists in installing the FUYL™ Kiosk Mount. The FUYL™ Kiosk Mount is designed to be attached to the FUYL Locker and securely house the iPad that will be used as the FUYL Locker interface.
Prerequisites
FUYL™ Locker Physical Installation
Follow the FUYL™ Locker Physical Installation guide to set up a FUYL™ Locker.
Power & Networking Requirements
Ensure the locker is situated near a second outlet (in addition to the FUYL™ Locker's) to provide power to the FUYL™ Kiosk iPad. If the iPad selected is sold without an appropriate USB-C wall charger one will need to be supplied to connect to the included iPad charging cable.
The FUYL™ Kiosk will also need sufficient access to WiFi in order to operate.
Included Hardware
The FUYL™ Kiosk Mount is available in 2 versions, suiting either a 10th Generation or a 7th-9th Generation iPad.
Each kit includes:
- iPad Storage & Mounting Hardware
- Allen key
- 3m charging cable (USB-C to USB-C or USB-C to Lightning)
- Handle removal tool
- 8 x M6 bolts
- 2 x M5 bolts
- Keys
- Rubber grommet
- Cable management accessories
- Printed Installation Instructions
Installation Video
The following video illustrates the installation process described in the next section:
Process

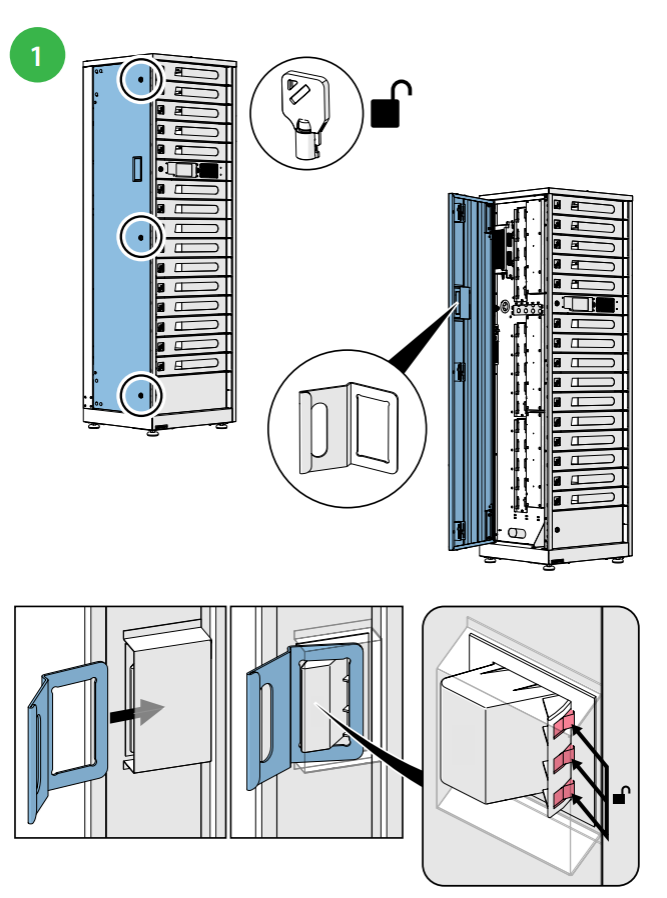

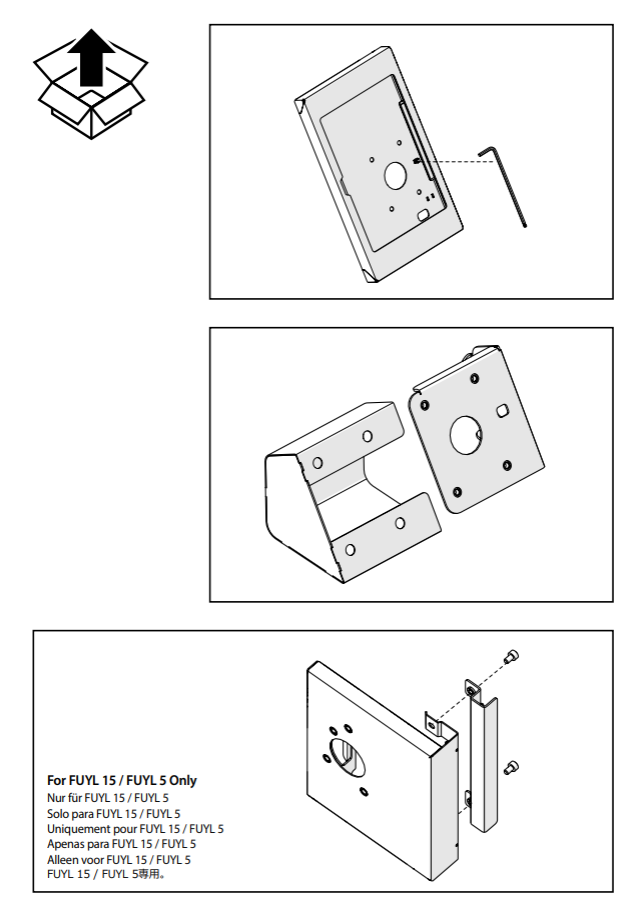

Prepare the components
Some items are shipped attached to ensure safety in shipping. Please unscrew/detach them in preparation for installation.

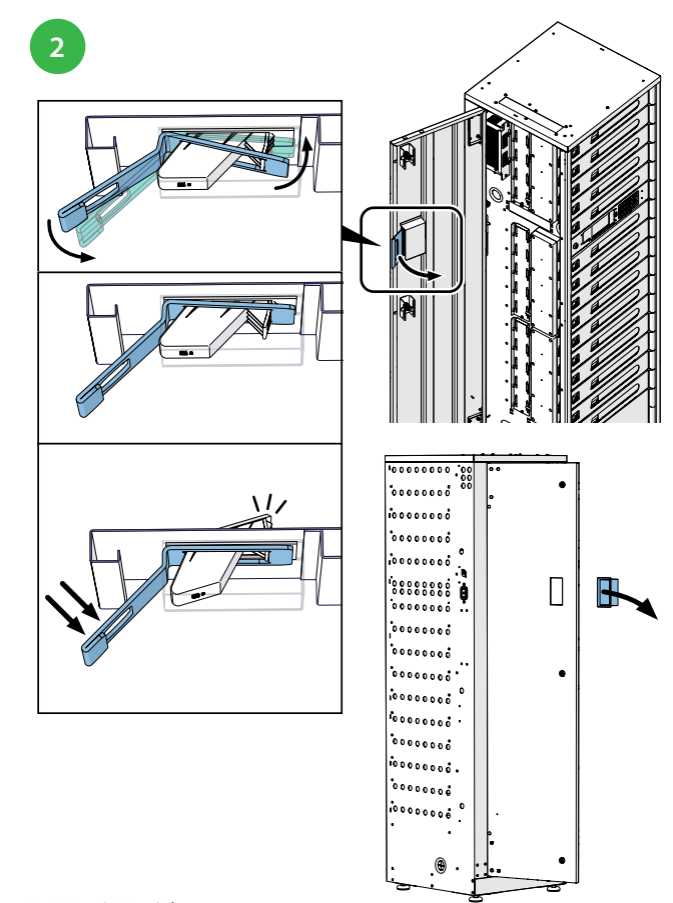

Remove the existing handle from your FUYL™ Locker

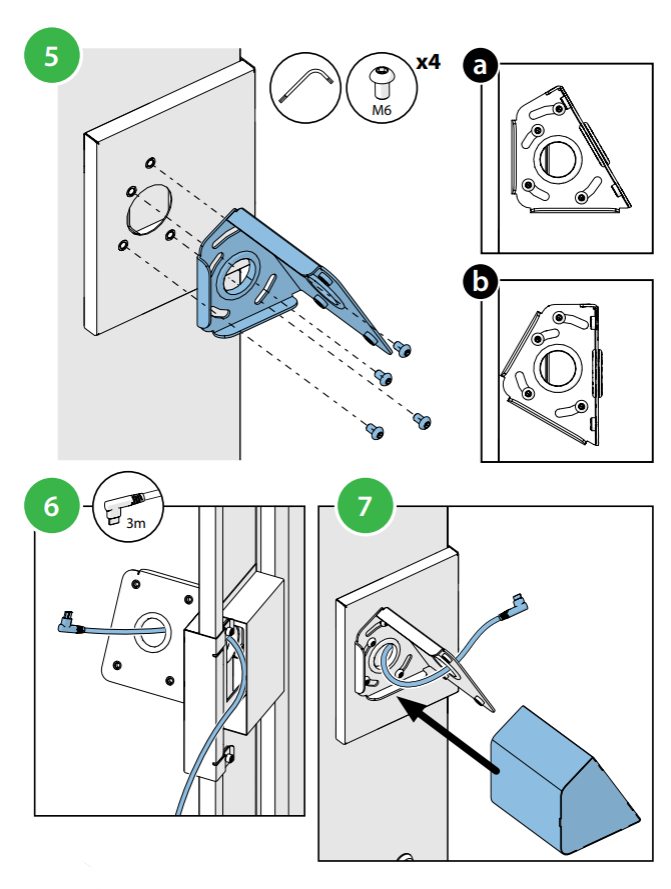

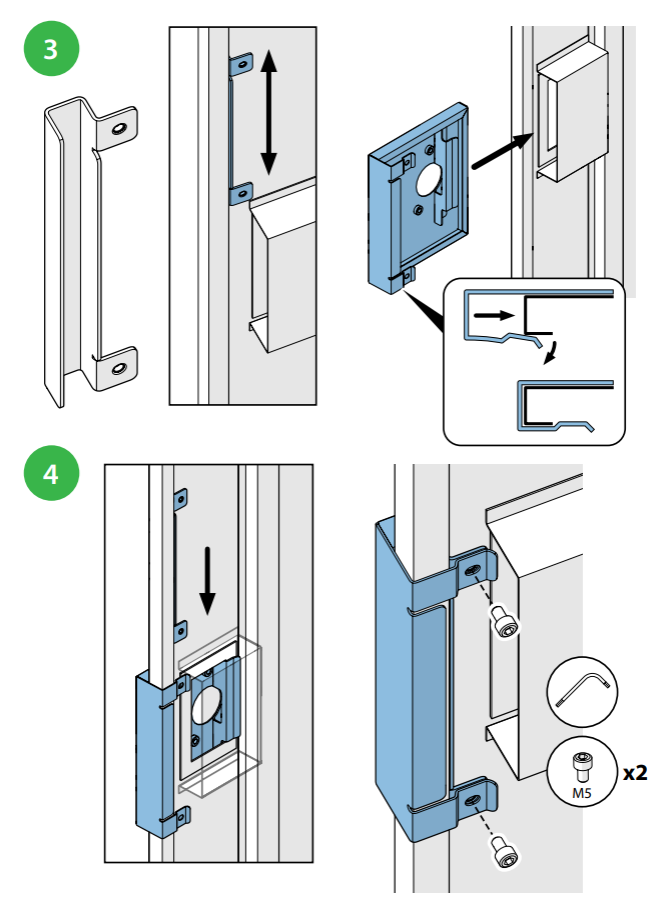

Attach the mount support to the FUYL™ Locker access door

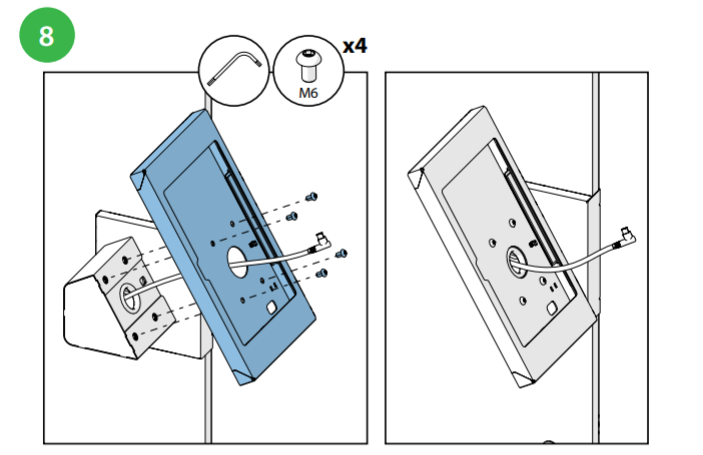

Install the iPad holder and route the iPad charging cable through the door

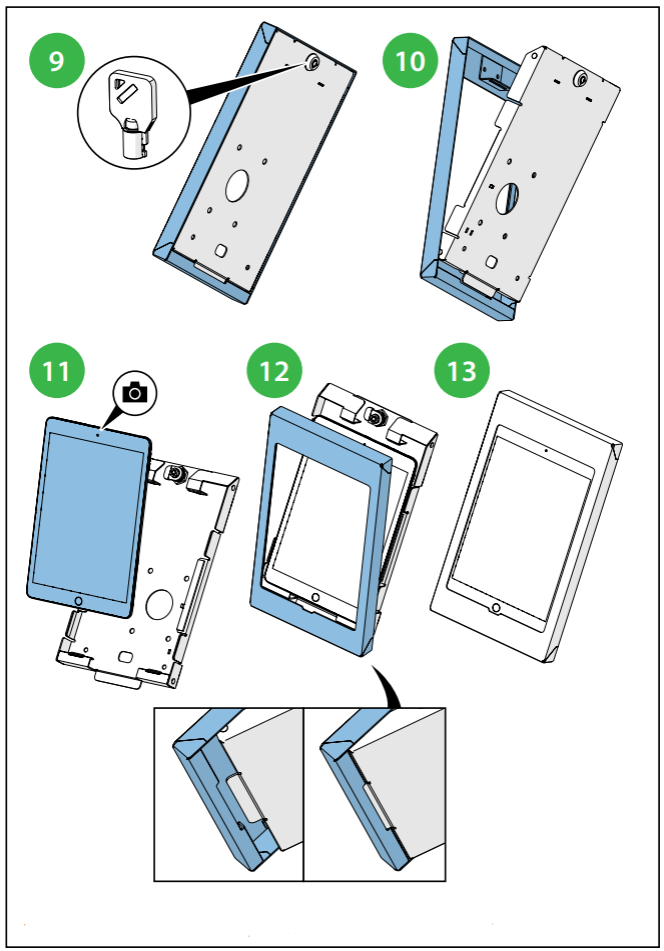

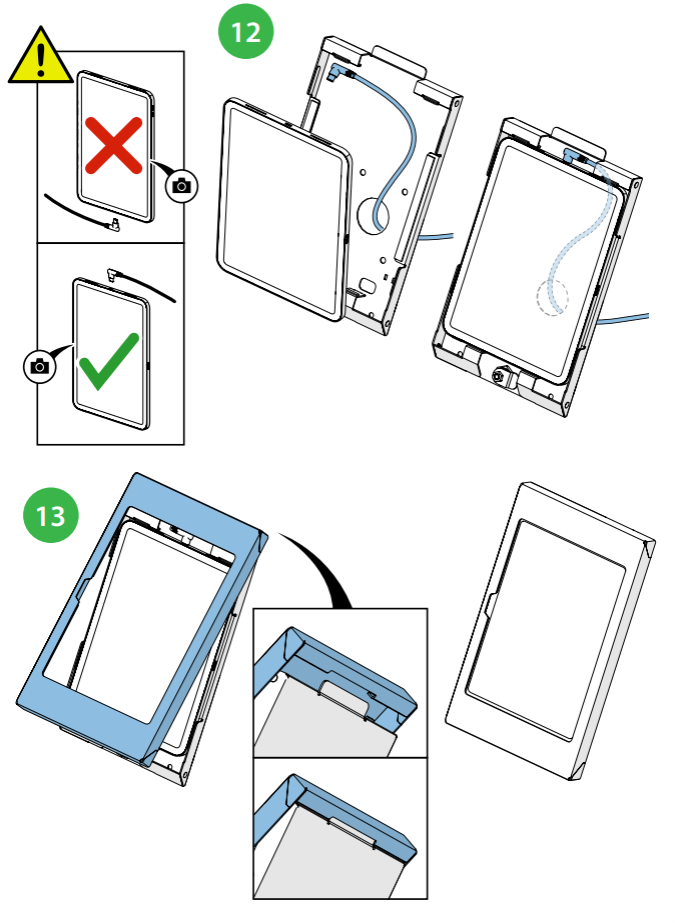

Installing an iPad
10th Generation iPads
7th - 9th Generation iPads

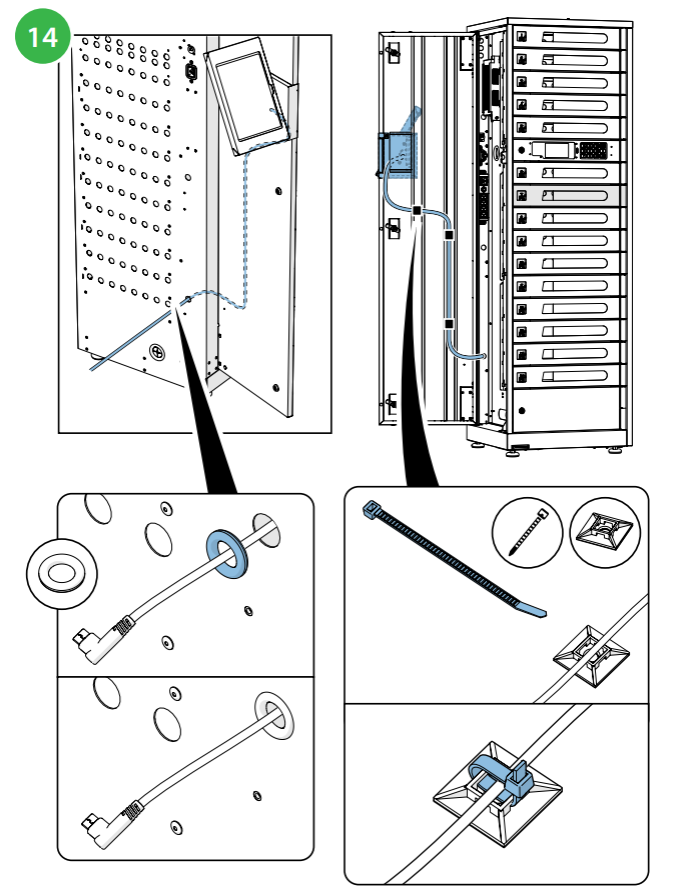

Route and organize the iPad charging cable using the supplied accessories

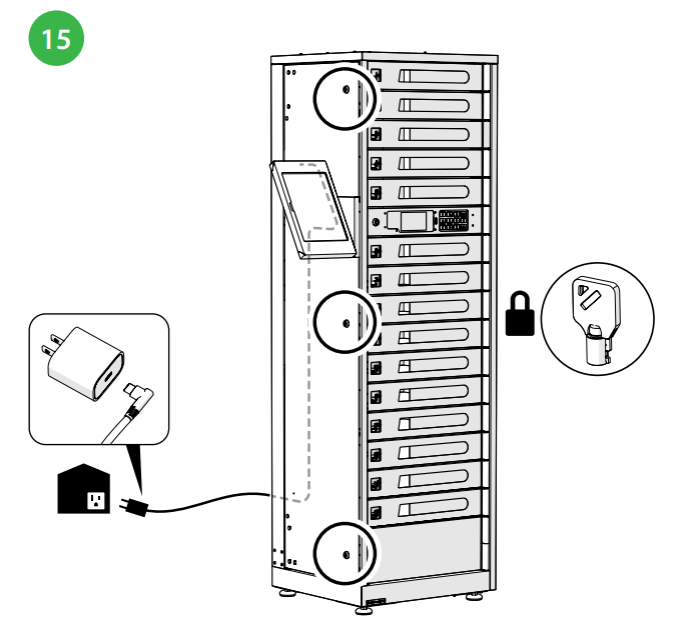

Close and lock the side access door, & connect the iPad cable to the power adapter and outlet.
Next Steps
See the guide to Installing and Configuring the FUYL Kiosk App
See the guide to Setting up a FUYL™ Smart Locker with the FUYL™ Kiosk
See the guide to Migrating to FUYL™ Enhanced from FUYL™ Essentials or Advanced
